Descripción

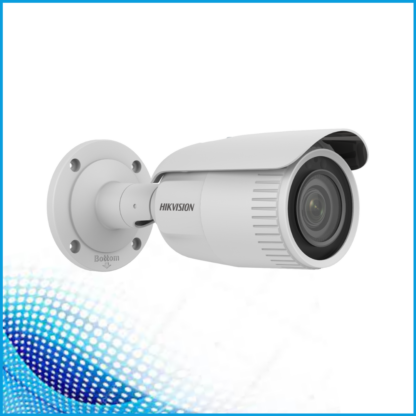

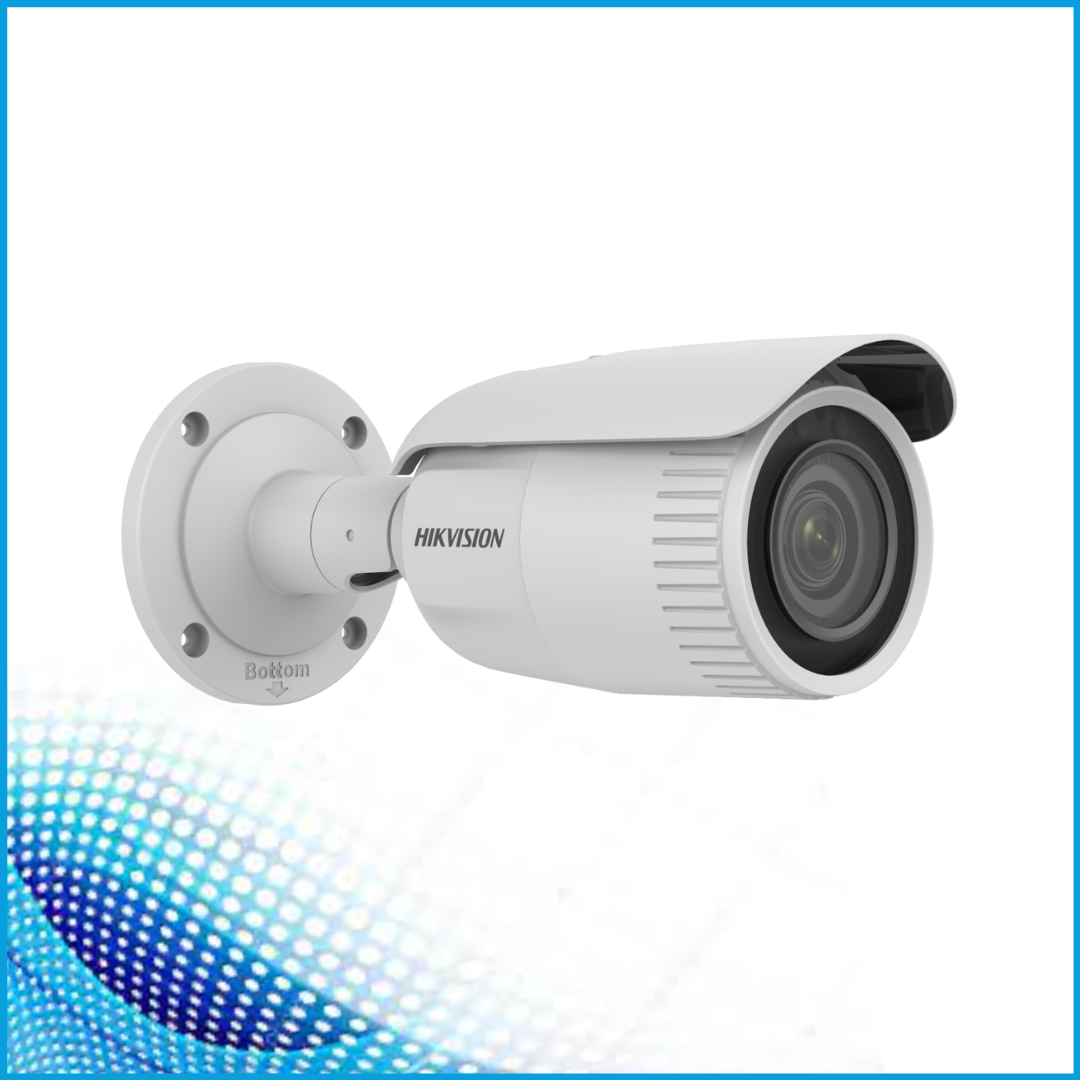

CAMARA HIKVISION IP 4MPX BULLET, VARIFOCAL MOTORIZADA, 2.8~12MM VFLENTE (-Z:MOTORIZED VFLENTE), APTA PARA INTERPERIE IP67, 30M IR, DWDR, COMPLETAMENTE METALICA, 1/3″ PROGRESSIVE CMOS, FILTRO MECANICO DE INFRARROJOS ICR, 2560X1440:20FPS(P)/(N), 2304X1296:25FPS(P)/30FPS(N), COMPRESION H.265+/H265/H.264+&H.264, REDUCCION DE RUIDO 3D DNR, COMPENSACION DE LUZ DE FONDO BLC, ILUMINADOR HASTA 30M, ALIMENTACION DC12V & POE, TF CARD SLOT OPERATIVO, CONECCION A HIK-CONNECT
Características
Camera
-Image: Sensor 1/3″ Progressive Scan CMOS
-Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
-Shutter Speed: 1/3 s to 1/100, 000 s, support slow shutter
-Slow Shutter: Yes
-Auto-Iris: No
-Day & Night: IR cut filter
-Digital Noise Reduction: 3D DNR
-WDR:120 dB
-Angle Adjustment: Pan: 0° to 360°, tilt: 0°to 90°, rotation: 0° to 360°
Lens
-Focal Length: 2.8 to 12 mm
-Aperture: F1.6
-Focus: -I: Manual -IZ: Auto
-FOV: Horizontal field of view: 98°to 28° Vertical field of view: 51°to 16° Diagonal field of view: 115°to 32°
-Lens Mount: Φ14
IR
-IR Range: Up to 30 m
-Wavelength: 850 nm
Compression Standard
-Video Compression: Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG
-H.264 Type: Baseline Profile/Main Profile/High Profile
-H.264+: Main stream supports
-H.265: Type Main Profile
-H.265+: Main stream supports
-Video Bit Rate 32 Kbps to 8 Mbps
Smart Feature-set:
-Region of Interest: 1 fixed region for main stream and sub-stream
-Max. Resolution: 2560 × 1440
-Main Stream: 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
-Max. Frame Rate: 60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
-Sub-stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
-Max. Frame Rate: 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
-Image Enhancement: BLC, 3D DNR
-Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
-Day/Night Switch: Auto, scheduled
Network
-Network Storage: Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR
-Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
-Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP,802.1X, QoS, IPv6, UDP, Bonjour
-General Function: One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
-Firmware Version: 5.5.3 API ONVIF (PROFILE S, PROFILE G), ISAPI
-Simultaneous Live View: Up to 6 channels
-User/Host: Up to 32 users 3 levels: Administrator, Operator and User
-Client: iVMS-4200, iVMS-4500, iVMS-5200
-Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
-Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
-Video Output: (Without -Z) 1Vp-p composite output (75 Ω/BNC)
-Reset Button: Yes
General
-Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
-Power Supply: 12 VDC ± 20%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
-Power Consumption and Current: -IZ: 12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W -I: 12 VDC, 0.6 A, max. 7 W; PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 9 W
-Protection Level: IP67 TVS 2000V lightning protection, surge protection and voltage transient protection
-Material: Metal
-Dimensions: 105 mm × 105 mm × 145 mm (4.1″ × 4.1″ × 5.7″)
-Weight: Camera: approx. 1035 g (2.3 lb.) With package: approx. 1550 g (3.4 lb.)
